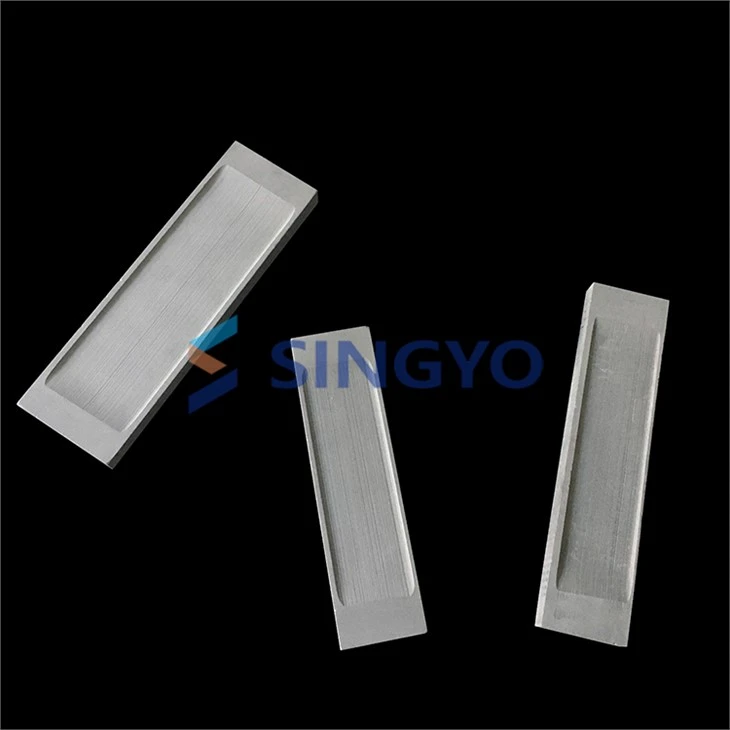

Boron Nitride Composite Ceramic Evaporation Boat
Ceramic evaporation boat is the very good material for vacuum aluminizing.
Description
Ceramic evaporation boat is a very good material for vacuum aluminizing strict requirements which has special electrical and thermal properties. It is made of electrically conductive advanced ceramic composites ( Boron Nitride and Titanium Diboride) and can meet the strict requirement for metal film and paper with good thermal shock resistance and good chemical inertness. Boron Nitride evaporation boat has the advantages of long service life, uniform evaporation, fast heating speed and high evaporation efficiency.
Boron nitride ceramic evaporation boat is widely used in vacuum aluminium plating packing factories, capacitors metallized coating, screen coating, bronzing coating, anti-fake mark coating, reflective coating and paper.
FEATURES:
● Good chemical stability
● Excellent thermal shock resistance ability and bending resistance
● The molten aluminium spreads easily and evenly.
● Good resistance to molten aluminium or any other molten metal corrosion increases the boat’s life.
TECHNOLOGY STANDARD:
Working current：400-900A
Working voltage：5-15V
Operating temperature：1300-1750℃
Evaporation velocity ：0.3-0.5（g/min/ cm²）
Density：2.8-3.2g/cm³
Resistivity：200-2000μΩ/ cm³
Coefficient of thermal expansion：(4-6)*10-6K
Bending strength：>150Mpa.
PRODUCT SPECIFICATIONS:
Specifications | L | B | H | Groove | L1 | B1 | H1 |
105×20×10 | 105 | 20 | 10 | C | 80 | 15 | 1.5 |
105×30×10 | 105 | 30 | 10 | 80 | 25 | 1.5 | |
110×7×5 | 110 | 7 | 5 | 80 | 4 | 2.5 | |
110×16×9 | 110 | 16 | 9 | 80 | 11 | 1.5 | |
110×20×10 | 110 | 20 | 10 | 80 | 15 | 1.5 | |
110×24×10 | 110 | 24 | 10 | 80 | 19 | 1.5 | |
110×26×10 | 110 | 26 | 10 | 80 | 21 | 1.5 | |
120×24×10 | 120 | 24 | 10 | 92 | 19 | 1.5 | |
120×30×10 | 120 | 30 | 10 | 92 | 25 | 1.5 | |
120×35×10 | 120 | 35 | 10 | 92 | 30 | 1.5 | |
125×30×10 | 125 | 30 | 10 | 92 | 25 | 1.5 | |
125×35×10 | 125 | 35 | 10 | 101 | 30 | 1.5 | |
130×24×10 | 130 | 24 | 10 | 101 | 19 | 1.5 | |
130×30×10 | 130 | 30 | 10 | 101 | 25 | 1.5 | |
130×35×10 | 130 | 35 | 10 | 101 | 30 | 1.5 | |
130×40×10 | 130 | 40 | 10 | 101 | 35 | 1.5 | |
140×30×10 | 140 | 30 | 10 | 112 | 25 | 1.5 | |
150×30×10 | 150 | 30 | 10 | 120 | 25 | 1.5 |
Besides the standard dimension listed, we also accept custom dimensions.
ABOUT DELIVERY TIME:
After signing the contract, we will arrange the production according to the time when the payment is received. Normally, the goods will be ready in 5-10 working days.
