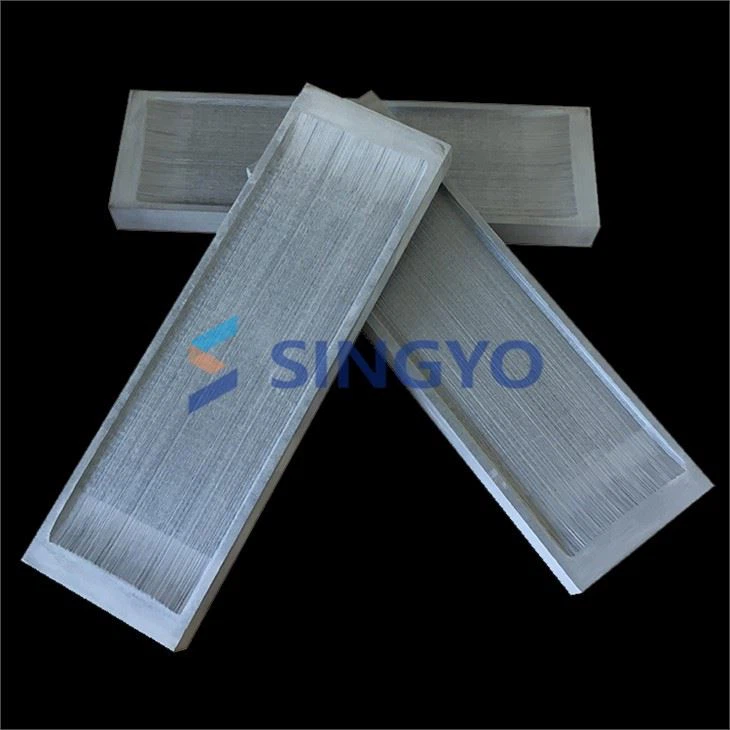

Ceramic Evaporation Boat for Metallization

Ceramic Evaporation boat is used for vacuum alumium metallizing.

Description

Using the most advanced production equipment and technology to improve the long-term stability of the product, our boats have a world-class performance and quality to meet the production of metallized film, paper, textiles and other materials, widely used in the vacuum evaporation packaging materials, capacitor metal vacuum coating, paper, aluminum plating, bronzing coating, anti-counterfeit labels such as aluminum plating industry.

After over 10 years developments and continious improvements, by using modern processing , manufacturing techniques and high-quality advanced ceramic materials, we can supply you evaporation boats with high evaporation rates and long time service life.

Features and Advantages

●Using the high purity raw materials; ensure the material has the best chemical property. Pressed with two-way, ensure the ceramics have consistent volume density properties.

●Adopt international advanced vacuum hot pressing sintering; ensure the evaporation boat materials have stable physical properties.

●Pressed with two-way, ensure the ceramics have consistent volume density properties.

●Production equipment digital control to ensure stable and reliable product quality.

●A unique formulation process and optimum composition, the evaporation boats enhance high thermal shock resistance and breaking strength. Increased the molten aluminum spreading, evaporation efficiency, resist molten aluminum corrosion and extend the working time.

Typical Physical Properties

Property	Technical Standards
Density(g/cm³)	3.0-3.2g/cm³
Porosity	＜3%
Phase composition	BN,TIB2,ALN
Color	Gray
working current	400-900A
working voltage	5-15V
working temperature	1300-1750℃
evaporation rate	0.3-0.5g/min/cm³
Service life	10-15hours
Electrical Properties
Specific Resistance,RT	200-2000μΩ/cm
Mechanical Properties
Brinell hardness (HB 2.5/40)	45
Flexural strength, 4-point bending, σ	70
Young’s modulus, E (GPa)	5.5
Fracture toughness2 Klc (MPa √m)	1.8
Thermal Properties*
Maximum thermal extension at 20–1600ºC	1.25(%)

Product Dimensions

Dimension	L	B	H	Groove	L1	B1	H1
105x20x10	105	20	10	C	80	15	1.5
105×30×10	105	30	10		80	25	1.5
110x7x5	110	7	5		80	4	2.5
110×16×9	110	16	9		80	11	1.5
110×20×10	110	20	10		80	15	1.5
110x24x10	110	24	10		80	19	1.5
110x26x10	110	26	10		80	21	1.5
120x24x10	120	24	10		92	19	1.5
120×30×10	120	30	10		92	25	1.5
120x35x10	120	35	10		92	30	1.5
125×30×10	125	30	10		92	25	1.5
125x35x10	125	35	10		101	30	1.5
130×24×10	130	24	10		101	19	1.5
130x30x10	130	30	10		101	25	1.5
130×35×10	130	35	10		101	30	1.5
130×40×10	130	40	10		101	35	1.5
140×30×10	140	30	10		112	25	1.5
150x30x10	150	30	10		120	25	1.5
